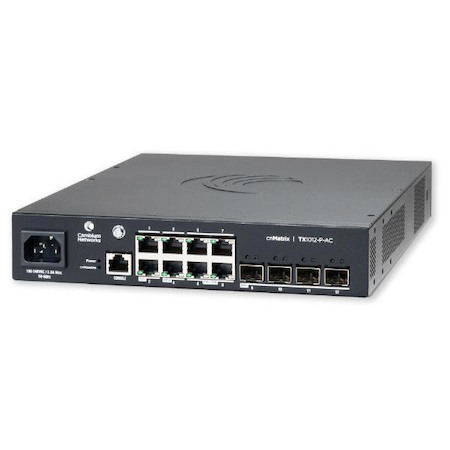

Cambium Networks' next generation switching platform offers a cloud managed, high performance, feature rich enterprise grade ethernet switching solution.
The cnMatrix platform of switches provides:
- Full Line Rate, non-blocking architecture
- Easy and simple, free cloud (or on premise) management with cnMaestro™ or XMS
- Zero-touch deployment of switches makes installation easy
- Policy Based Automation eliminates manual and time consuming configuration
- Enhanced Security with automated device profiling and segmentation
- Policy Based Automation eliminates manual configuration during adds, moves and changes of network devices
- Unified Wired-Wireless access solution
- 802.3af/at/bt - up to 90W
- 24V Passive PoE - up to 15W
- 54V Passive PoE - up to 90W
The cnMatrix series of fully managed switches delivers full Layer 2 and Layer 3 capabilities with enhanced access security. The cnMatrix series offers flexibility with SFP+ (10 Gbps) or SFP (1 Gbps) uplink ports. These switches come with a 3-Year Limited Lifetime Warranty.
- General Information
- Manufacturer
- Cambium Networks
- Manufacturer Website Address
- http://www.cambiumnetworks.com
- Brand Name
- Cambium Networks
- Product Line
- cnMatrix
- Product Series
- TX1000
- Product Type
- Ethernet Switch
- Warranty
- Limited Warranty
- 3 Year
- Interfaces/Ports
- Total Number of Network Ports
- 8
- Uplink Port
- Yes
- Modular
- Yes
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 8 x Gigabit Ethernet PoE+
- 4 x 10 Gigabit Ethernet Expansion Slot
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Ethernet Technology
- Gigabit Ethernet
- 10 Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- 10GBase-X
- I/O Expansions
- Total Number of Expansion Slots
- 4.0
- Expansion Slot Type
- SFP+
- Number of SFP+ Slots
- 4
- Network & Communication
- Layer Supported
- 3
- Networking Standards
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3ac
- IEEE 802.3ad
- IEEE 802.3x
- IEEE 802.1ad
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3bt
- IEEE 802.1ab
- IEEE 802.1D
- IEEE 802.1s
- IEEE 802.1Q
- IEEE 802.1x
- IEEE 802.1w
- IEEE 802.3
- Management & Protocols
- Manageable
- Yes
- Power Description
- PoE (RJ-45) Port
- Yes
- PoE Budget
- 200 W
- Power Source
- Power Supply
- Power Consumption
- 260 W
- Physical Characteristics
- Compatible Rack Unit
- 1U
- Form Factor
- Rack-mountable
- Wall Mountable
- DIN Rail Mountable
- Height
- 44 mm
- Width
- 230 mm
- Length
- 280 mm
- Weight (Approximate)
- 2.22 kg
