- General Information
- Manufacturer
- D-Link Systems, Inc
- Manufacturer Website Address
- http://www.dlink.com.au
- Brand Name
- D-Link
- Product Series
- DMS-3130
- Product Type
- Ethernet Switch

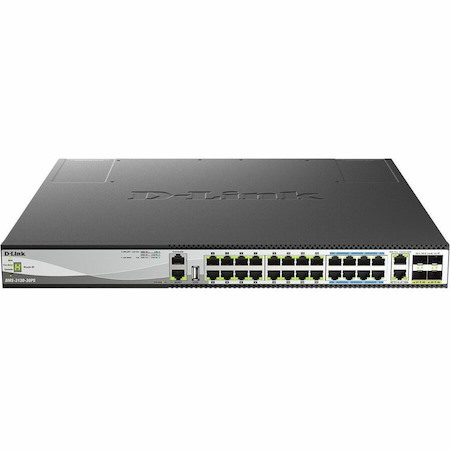

The DMS-3130 Series is a range of Layer 3 Stackable Multi-Gigabit Managed Switches designed to connect end-users in a secure enterprise or metro Ethernet access network. These switches support both multicasting and enhanced security, making them an ideal multi-Gigabit access layer solution. Each model boasts two 10GBASE-T ports and four 10G/25G SFP28 ports to provide versatility and speed.
Future-Proof Power over Ethernet Support
The DMS-3130-30PS provides sixteen 2.5G ports supporting 802.3af/at PoE and eight 5G ports supporting 60W 802.3bt PoE standards with a power budget of 740 watts expandable to 960 watts with dual power supplies. Multi-Gigabit PoE with up to 60W of power per port is ideal for Wi-Fi 6/6E access points, smart lighting or industrial automation equipment. Perpetual PoE and Fast PoE support delivers faster and uninterrupted power to connected devices even when the switch is booting.
- Interfaces/Ports
- Total Number of Network Ports
- 26
- Uplink Port
- Yes
- Modular
- Yes
- Stack Port
- Yes
- Port/Expansion Slot Details
- 16 x 2.5 Gigabit Ethernet Network PoE+
- 8 x 5 Gigabit Ethernet Network PoE++
- 2 x 10 Gigabit Ethernet Network
- 4 x 25 Gigabit Ethernet Expansion Slot
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Ethernet Technology
- 2.5 Gigabit Ethernet
- 5 Gigabit Ethernet
- 10 Gigabit Ethernet
- 25 Gigabit Ethernet
- Network Technology
- 2.5GBase-T
- 5GBase-T
- 10GBase-T
- 25GBase-X
- I/O Expansions
- Total Number of Expansion Slots
- 4.0
- Expansion Slot Type
- SFP28
- Network & Communication
- Layer Supported
- 3
- Networking Standards
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3bt
- IEEE 802.3ah
- IEEE 802.1ag
- IEEE 802.3ad
- IEEE 802.1x
- IEEE 802.3x
- IEEE 802.1AX
- IEEE 802.1D
- IEEE 802.1w
- IEEE 802.1p
- IEEE 802.1s
- IEEE 802.1Q
- IEEE 802.1v
- IEEE 802.3
- Management & Protocols
- Manageable
- Yes
- Power Description
- PoE (RJ-45) Port
- Yes
- PoE Budget
- 740 W
- Input Voltage
- 120 V AC
- 230 V AC
- Frequency
- 50 Hz
- 60 Hz
- Power Source
- Power Supply
- Redundant Power Supply Supported
- Yes
- Number of Power Supplies Supported
- 2
- Power Consumption
- 1211.50 W
- Physical Characteristics
- Height
- 44 mm
- Width
- 440 mm
- Depth
- 470 mm
- Weight (Approximate)
- 6.54 kg
- Miscellaneous
- Application/Usage
- Enterprise
- Wireless Access Point
- Automation Industry
