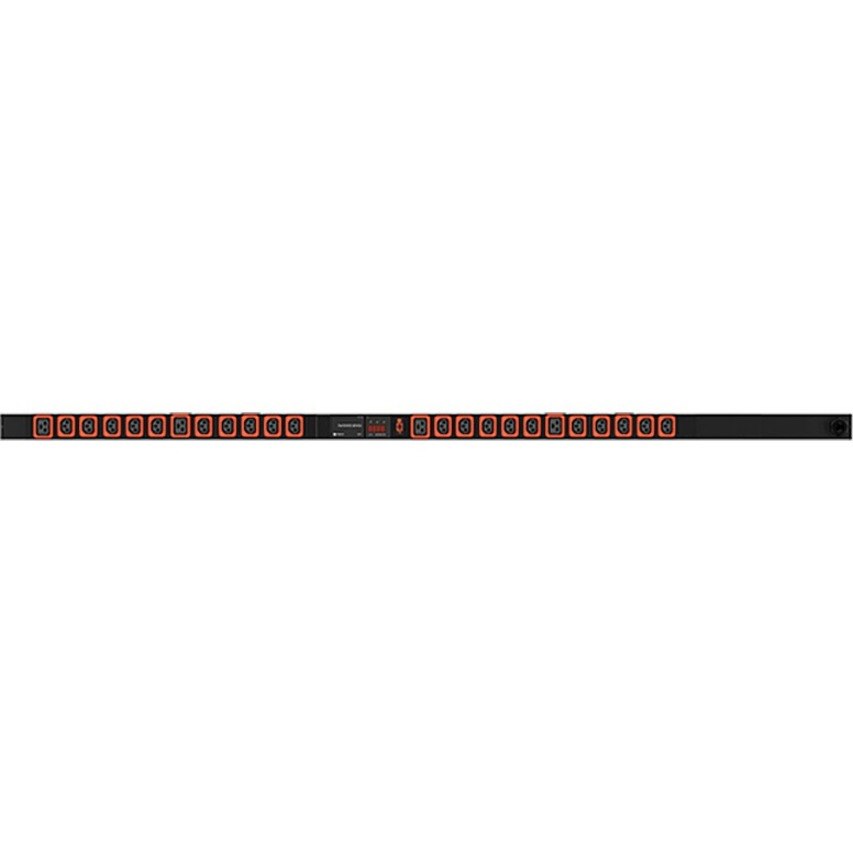

The Vertiv Geist 14240230 is a 16A, 230V, 0U metered vertical rack power distribution unit. It has 20 Locking IEC C13 outlets, 4 Locking IEC C19 outlets and a 3m power cord with 2P+E (IP44) plug providing 3.6kW in power capacity. This Metered Data Center rPDU provides a real-time view of power usage from a local LED display. It also offers Visible Light Communication technology through the Vertiv rPDU scanner app, which allows you to see complete power usage data locally from a mobile device. Each rack mount PDU undergoes individual testing for functionality to ensure your network is powered by a reliable smart power strip. The unit comes with a three-year warranty that can be extended to five-years if registered within 120 days of purchase.
- General Information
- Manufacturer
- Vertiv
- Manufacturer Website Address
- http://www.vertiv.com/
- Brand Name
- Vertiv Geist
- Product Series
- rPDU
- Product Type
- PDU
- Technical Information
- PDU Type
- Metered
- Phase
- Single Phase
- Plug/Connector Type
- 2P+E (IP44)
- Plug/Connector Detail
- 1 x 2P+E (IP44)
- Receptacle Type
- U-Lock IEC 60320 C13
- U-Lock IEC 60320 C19
- Receptacle Detail
- 20 x U-Lock IEC 60320 C13
- 4 x U-Lock IEC 60320 C19
- Locking Receptacles
- IEC 60320 C13
- IEC 60320 C19
- Power Description
- Input Voltage
- 230 V
- Input Voltage Range
- 200 V AC - 240 V AC
- Output Voltage
- 240 V AC
- Output Voltage Range
- 200 V AC - 240 V AC
- Power Rating (Watt)
- 3.60 kW
- Input Current
- 16 A
- Management
- Remote Outlet Switching
- No
- Interfaces/Ports
- Serial Port
- No
- Modem (RJ-11)
- No
- Modem (RJ-12)
- No
- Modem (RJ-22)
- No
- Network (RJ-45)
- No
- USB
- No
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Mounting Orientation
- Vertical
- Mount Type
- Cabinet-mountable
- Rack-mountable
- Form Factor
- Hot-swappable
- Rack Height
- 0U
- Cord Length
- 3 m
- Width
- 51 mm
- Depth
- 51 mm
- Length
- 1.4 m
- Miscellaneous
- Energy Star
- No
- Country of Origin
- China
- TAA Compliant
- No
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
