Multiservice 802.11ac dual band concurrent 2 stream Wired/Wireless wall switch

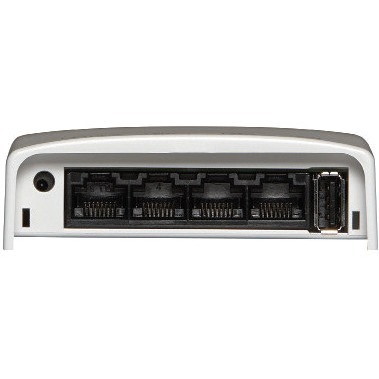

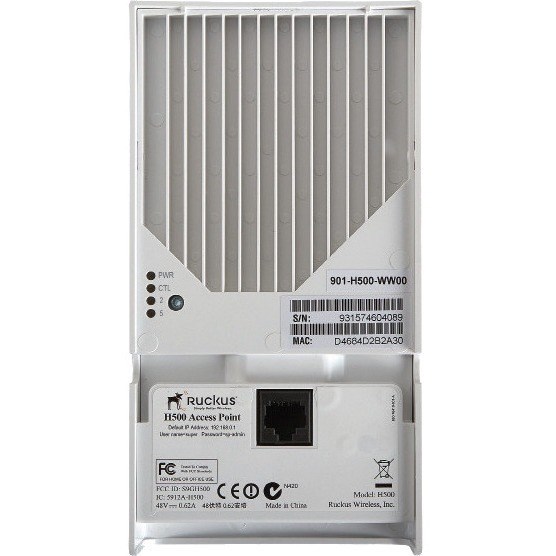

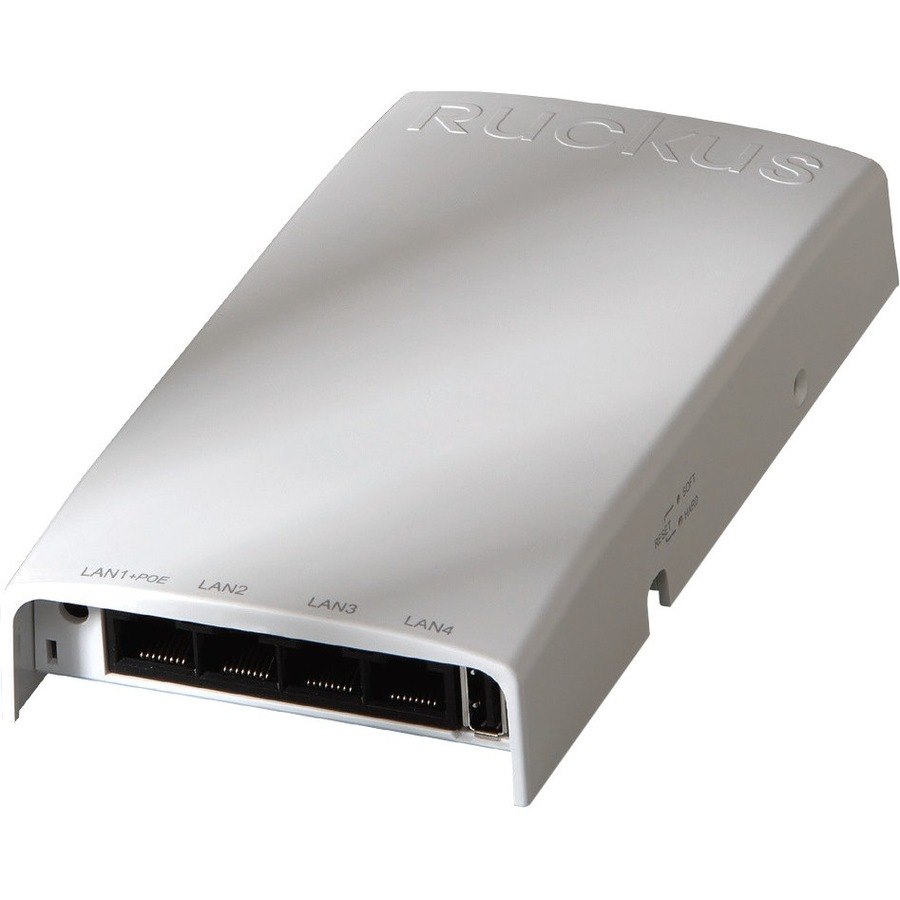

The ZoneFlex H500 is a dual-band dual-concurrent 802.11ac wall mounted wired switch and wireless wall access point in one form factor. The ZoneFlex H500 features integrated 2.4GHz and 5GHZ concurrent radios, five wired Ethernet ports, PoE ouput, and a passthrough feature for devices such as digital phones that require native access to a PBX system. Designed with hotels and multi-dwelling units in mind, the ZoneFlex H500 is easy to mount to an electrical junction box and has a sleek and low-profile form factor.
- General Information
- Manufacturer
- CommScope, Inc
- Manufacturer Website Address
- http://www.commscope.com
- Brand Name
- CommScope
- Product Line
- ZoneFlex
- Product Type
- Wireless Access Point
- Technical Information
- Wireless LAN Standard
- IEEE 802.11ac
- Frequency Band
- 2.40 GHz
- 5 GHz
- Wireless Transmission Speed
- 867 Mbit/s
- MIMO Technology
- Yes
- Interfaces/Ports
- Ethernet Technology
- Gigabit Ethernet
- Ethernet
- Fast Ethernet
- Number of Network (RJ-45) Ports
- 5
- PoE (RJ-45) Port
- Yes
- PoE PD Port
- Yes
- VGA
- No
- HDMI
- No
- USB
- Yes
- Powerline
- No
- Management Port
- No
- Physical Characteristics
- Form Factor
- Wall Mountable
- Height
- 29 mm
- Width
- 171 mm
- Depth
- 90 mm
- Weight (Approximate)
- 210 g
