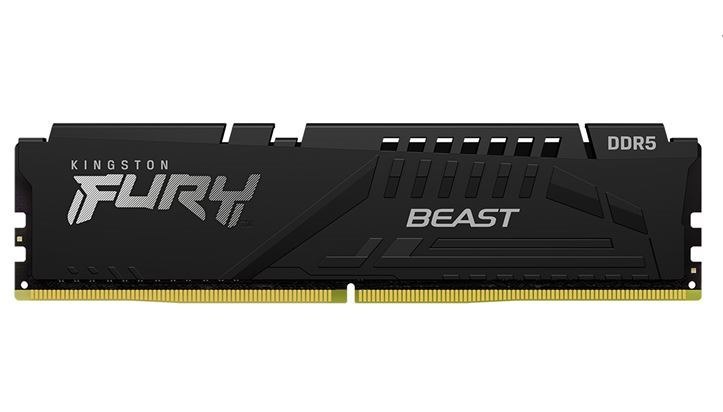

Kingston 16GB (1x16GB) DDR5 6000MT/s CL36 FURY Beast Black EXPO Memory Kingston FURY KF560C36BBE2-16 is a 2G x 64-bit (16GB) DDR5-6000 CL36 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. The module supports AMD® EXPO v1.1 and Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Each module has been tested to run at DDR5-6000 at a low latency timing of 36-44-44 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. DEFAULT FEATURES • Power Supply: VDD = 1.1V Typical • VDDQ = 1.1V Typical • VPP = 1.8V Typical • VDDSPD = 1.8V to 2.0V • On-Die ECC • Height 1.37' (34.9mm), w/heatsink DEFAULT SPECIFICATIONS CL(IDD) 40 cycles Row Cycle Time (tRCmin) 48ns(min.) Refresh to Active/Refresh Command Time (tRFCmin) 295ns(min.) Row Active Time (tRASmin) 32ns(min.) UL Rating 94 V - 0 Operating Temperature 0 to +85C Storage Temperature -55 C to +100 C
