- General Information
- Manufacturer
- D-Link Systems, Inc
- Manufacturer Website Address
- http://www.dlink.com.au
- Brand Name
- D-Link
- Product Type

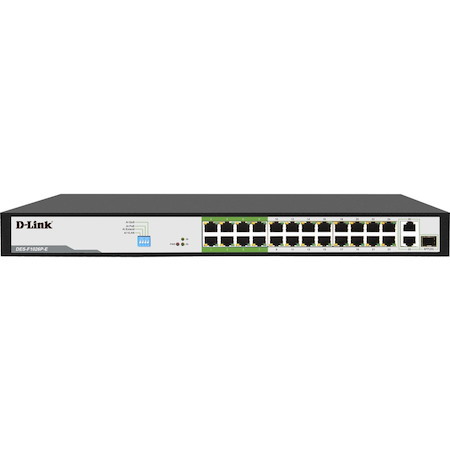

- Ethernet Switch
Built for your Need
Robust and cost-effective PoE solution to provide power for your PoE powered devices such as IP cameras, CCTV, VoIP, AP etc
Up to 250m PoE and Data Transmission
Equipped with PoE extend technology, DES-F1026P-E have the capability to supply 802.3af/at PoE up to 250m with data transmission. Cost saving for long distance solution
6KV Surge Protection
D-Link 250M is enhanced with 6KV surge protection effectively guard equipment from lighting damage especially if use on AP/IP camera install outdoor or at higher position
Enhanced with VLAN Function
With a flick of button, Isolate the downlink port to each other can effectively suppress network storms and improve network performance
Enhanced with Video QoS
Improve the Video Packet Priority
Create high priority for video streaming, perfect solution for IP camera/CCTV
Intelligent Detection
Automatically Detect unresponsive PoE device and reboot the device for recovery
- Interfaces/Ports
- Total Number of Network Ports
- 24
- Uplink Port
- Yes
- Modular
- Yes
- Port/Expansion Slot Details
- 24 x Fast Ethernet PoE+
- 2 x Gigabit Ethernet TP/SFP Combo
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Ethernet Technology
- Fast Ethernet
- Gigabit Ethernet
- Network Technology
- 10/100Base-T
- 10/100/1000Base-T
- 1000Base-X
- I/O Expansions
- Total Number of Expansion Slots
- 1.0
- Expansion Slot Type
- SFP (mini-GBIC)
- Shared SFP Slot
- Yes
- Number of SFP Slots
- 1
- Network & Communication
- Layer Supported
- 2
- Power Description
- PoE (RJ-45) Port
- Yes
- PoE Budget
- 250 W
- Power Source
- Power Adapter
- Physical Characteristics
- Form Factor
- Desktop
- Height
- 44 mm
- Width
- 440 mm
- Depth
- 180 mm
- Weight (Approximate)
- 2.80 kg
