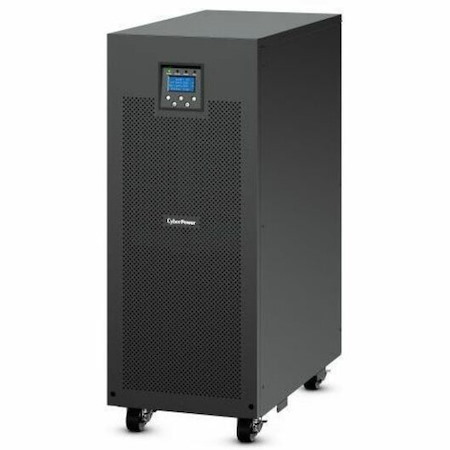

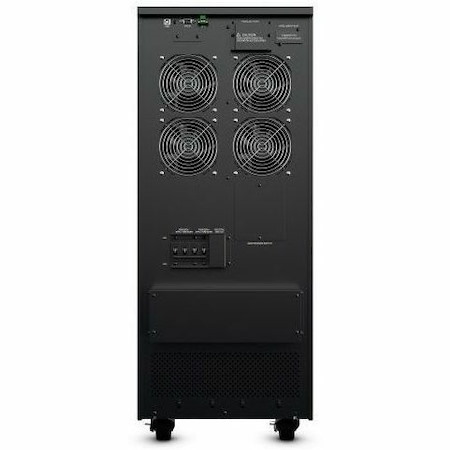

CyberPower OLS3S20KE guarantees power backup protection for IT equipment, servers, workstations, NAS/Storage devices, telecom devices, networking devices, security/emergency systems, and surveillance systems. The UPS adopts double-conversion topology to provide high-quality power output with additional ECO Mode to conserve power and save on energy costs. The UPS supports parallel expansion to allow the connections of multiple UPS units, achieving system redundancy. It is compatible with generators to prolong power continuity, and maintenance bypass switch to provide quick and safe maintenance without having to shut down UPS and connected equipment. The product can be connected to Emergency Power Off (EPO) switch, allowing users to shut off UPS immediately during emergency.
The UPS can employ Extended Battery Modules (EBM) to prolong runtimes, and its built-in Smart Battery Management (SBM) enhances battery charging process to extend battery lifetime. This model also features multifunction LCD readout to display information of power and battery conditions. The PowerPanel Power Management Software allows user to perform real-time monitoring and remote management of the UPS.
- General Information
- Manufacturer
- CyberPower Systems, Inc
- Manufacturer Website Address
- https://www.cyberpower.com/au
- Brand Name
- CyberPower
- Product Type
- Double Conversion Online UPS
- Warranty
- Limited Warranty
- 2 Year
- Additional Warranty Information
2 Year Battery Warranty
- Technical Information
- AVR
- Yes
- Plug/Connector Type
- Hardwire Terminal Block
- Receptacle Type
- Hardwire Terminal Block
- Receptacle Detail
- 1 x Hardwire Terminal Block
- Transfer Time
- 0 ns
- Overload Protection
- Yes
- EMI/RFI Noise Filter
- Yes
- Phase
- Three Phase
- Application/Usage
- IT Equipment
- Server
- Workstation
- NAS Storage Device
- Telecommunication
- Network
- Security System
- Emergency System
- Surveillance System
- Generator
- Efficiency
- 97%
- Power Description
- Load Capacity (VA)
- 20 kVA
- Load Capacity (Watt)
- 18 kW
- Input Voltage
- 230 V AC
- 380 V AC
- 400 V AC
- 415 V AC
- Input Voltage Range
- 176 V AC - 276 V AC
- 305 V AC - 478 V AC
- 110 V AC - 276 V AC
- 190 V AC - 478 V AC
- Output Voltage
- 208 V AC
- 220 V AC
- 230 V AC
- 240 V AC
- Input Frequency
- 45 Hz
- 66 Hz
- 60 Hz
- Output Frequency
- 50 Hz
- 60 Hz
- Input Current
- 90.90 A
- Waveform Type
- Pure Sine Wave
- Surge Energy Rating
- 445 J
- Input Power Factor
- 0.99
- Output Power Factor
- 0.9
- Display & Graphics
- Display
- LCD
- Management
- Network Management
- SNMP/HTTP Remote Monitoring
- Alarm
- Battery Mode
- Low Battery
- Overload
- Over Charge
- Overheat
- UPS Fault
- Controls/Indicators
- Status Indicators
LED Indicators:
- Line Mode
- Battery Mode
- Bypass Mode
- UPS Fault
- Interfaces/Ports
- Serial Port
- Yes
- USB
- Yes
- USB (HID Compliant) Port
- Yes
- EPO Port
- Yes
- Battery Information
- Number of Batteries
- 20
- Battery Characteristics
- Valve-regulated/Sealed
- Battery Chemistry
- Lead Acid
- Battery Size
- 12V
- Battery Capacity
- 9000 mAh
- Backup/Run Time (Full Load)
- 1.50 Minute
- Backup/Run Time (Half Load)
- 12.80 Minute
- Typical Battery Recharge Time
- 8 Hour
- Environmental Conditions
- Maximum Operating Temperature
- 40°C
- Maximum Operating Elevation
- 1 km
- Maximum Storage Elevation
- 15 km
- Operating Humidity
- 0% - 90%
- Storage Relative Humidity
- 0% - 95%
- Sound Emission (A-Weighted)
- 60 dB(A)
- Thermal Dissipation
- 3487 BTU/h
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Form Factor
- Tower
- Height
- 890 mm
- Width
- 350 mm
- Depth
- 650 mm
- Weight (Approximate)
- 172 kg
- Miscellaneous
- Package Contents
- OLS3S20KE 20000VA Tower UPS
- Parallel Port Cover Plate
- Terminal Cover
- Terminal Splices
- USB Cable
- User's Manual
- Certifications & Standards
CE
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
