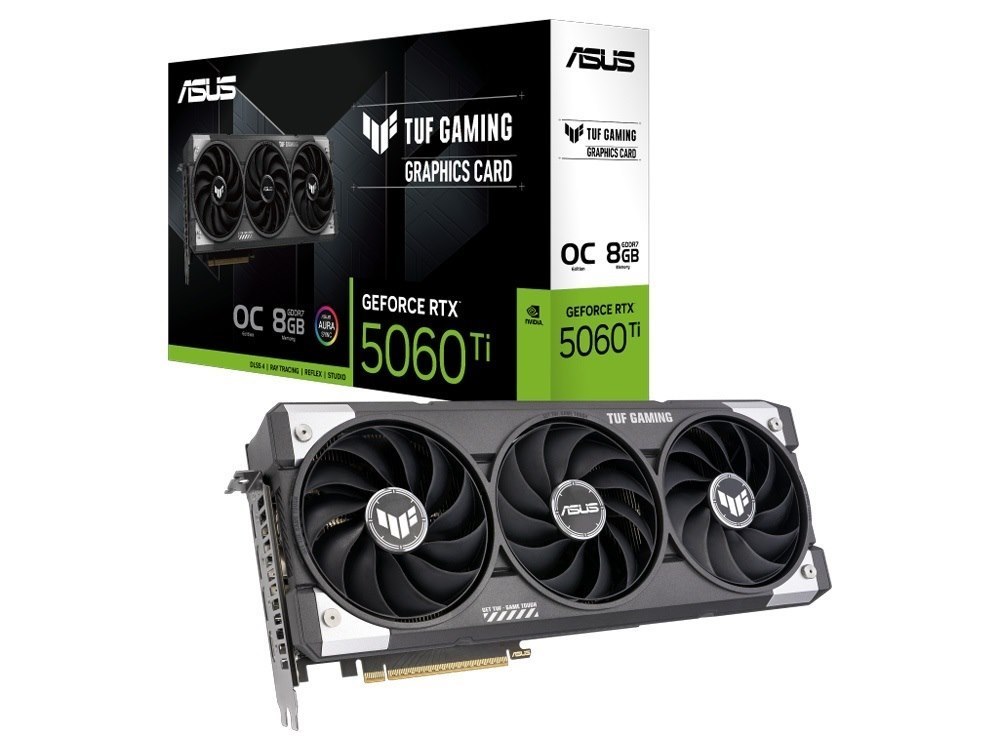

ASUS TUF Gaming GeForceRTX™ 5060 Ti
NVIDIA Blackwell architecture is elevated by enhanced cooling and power delivery, fortified with rugged reinforcements for exceptional durability. Lock, load and dominate with the TUF Gaming GeForce RTX™ 5060 Ti, designed to withstand the harshest conditions and deliverunparalleled performance.
TUF Chokes & MOSFETs
Certified military-grade TUF chokes and MOSFETs deliver rock-solid power to the GPU, which can help improve system stability.
TUF Capacitors
TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5X longer lifespan than standard capacitors.
This advanced cooling design features the ASUS-exclusive MaxContact manufacturing technique and efficient Axial-tech fans, helping to ensure premium thermal performance, optimized airflow and quiet operation, all within a robust and vented metal exoskeleton.
MaxContact Design
MaxContact is a special ASUS manufacturing process that effectively expands the surface area of the heat spreader that sits atop the GPU by 5%, compared to traditional designs. This improves temperatures by up to 2°C, in concert with an extensive heatsink array and powerful Axial-tech fans.
Axial-tech Upgrades
Axial-tech fans spin on dual-ball bearings and propel more air than standard fans.
New Directions
The two outer fans spin counterclockwise to reduce turbulence and enhance air dispersion. All three fans stop when GPU temps are below 50°C, for quieter operation during light tasks. They restart above 55°C, following a speed curve that balances performance and acoustics.
Vented Exoskeleton
A high-quality diecast shroud and aluminum backplate help prevent PCB flex and feature large vents to further increase heat dissipation
Perfect PSU for the TUF Gaming GeForceRTX 50 Series
The TUF Gaming Gold Series PSUs are the perfect match for TUF Gaming GeForce RTX 50 series graphics cards, offering exceptional durability and reliable power delivery. Built with high-quality components and military-grade capacitors, these PSUs ensure your gaming setup performs at its best, even during the most demanding sessions.
- General Information
- Manufacturer
- ASUS Computer International
- Manufacturer Website Address
- http://www.asus.com/au
- Brand Name
- TUF
- Product Type
- Graphic Card
- Technical Information
- API Supported
- OpenGL 4.6
- Number of Monitors Supported
- 4
- Features
- Triple-fan Cooler
- Maximum Digital Display Resolution
- 7680 x 4320
- CUDA Cores
- 4608
- AI-powered
- Yes
- Processor & Chipset
- Chipset Manufacturer
- NVIDIA
- Chipset Line
- GeForce
- Chipset Series
- RTX
- Chipset Model
- 5060 Ti
- GPU Boost Clock
- 2.69 GHz
- Memory
- Standard Memory
- 16 GB
- Memory Technology
- GDDR7
- Bus Width
- 128 bit
- Interfaces/Ports
- Host Interface
- PCI Express 5.0
- DisplayPort
- Yes
- Number of DisplayPort Outputs
- 3
- HDMI
- Yes
- Number of HDMI Outputs
- 1
- Power Description
- Power Supply Wattage
- 550 W
- Power Connector
- 1x 16-pin
- Physical Characteristics
- Slot Space Required
- Triple
- Form Factor
- Plug-in Card
- Cooler Type
- Fan Cooler
- Height
- 62 mm
- Width
- 133.5 mm
- Length
- 302 mm
- Miscellaneous
- Platform Supported
- PC
