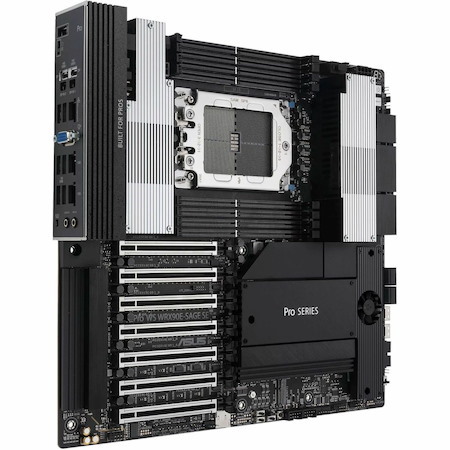

Asus WS WRX90E-SAGE SE Workstation Motherboard - AMD WRX90 Chipset - Socket sTR5 - SSI EEB

  • Part: 1626270
  • Model: PRO WS WRX90E-SAGE SE
$2,500.00

Availability

In Stock

AMD sTR5 EEB workstation motherboard, 7 PCIe 5.0 x16 slots, multi-GPU support, robust 32+3+3+3 power-stage design, CPU and memory overclocking ready, 4 PCIe 5.0 M.2 slots, dual 10 Gb LAN, PCIe Q-Release Slim

  • AMD sTR5 socket supports up to 96-core CPUs:Ready for AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors.
  • Ultrafast connectivity:Seven PCIe®5.0 x16 slots, dual 10 Gb LAN ports, four M.2 slots, two rear USB4®40Gbps Type-C®and SlimSAS NVMe support.
  • CPU and memory overclocking:Support for up to 2 TB ECC R-DIMM DDR5 memory modules (1DPC).
  • Robust power and thermal design:32+3+3+3 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks with active fans, and M.2 thermal pad.
  • PCIe Q-release Slim:Remove the graphics card by directly pulling it up, instead of pressing a PCIe latch.
  • Server-grade IPMI remote management and onboard BMC:Hardware and software-level with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and management.
  • Trusted stability:Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation.


  • General Information
    • Manufacturer
    • ASUS Computer International
    • Manufacturer Website Address
    • http://www.asus.com/au
    • Brand Name
    • Asus
    • Product Series
    • PRO
    • Packaged Quantity
    • 1
    • Product Type
    • Workstation Motherboard

  • Processor & Chipset
    • Chipset Manufacturer
    • AMD
    • Chipset Model
    • WRX90
    • Total Processor Supported
    • 1
    • Processor Socket
    • Socket sTR5
    • Processor Supported
    • Ryzen Threadripper PRO
  • Memory
    • Number of Memory Slots
    • 8
    • Memory Form Factor
    • DIMM
    • UDIMM
    • Memory Technology
    • DDR5 SDRAM
  • I/O Controller
    • Controller Type
    • Serial ATA/600
    • RAID Supported
    • Yes
    • RAID Levels
    • 0
    • 1
    • 5
    • 10
  • Video
    • Onboard Video
    • CPU Dependent Video
  • Audio
    • Audio Channels
    • 5.1
  • Network & Communication
    • Gigabit Ethernet
    • Yes
    • 10Gigabit Ethernet
    • Yes
  • I/O Expansions
    • Total Number of Expansion Slots
    • 7
    • PCI Express Standard
    • PCI Express 5.0
    • Total Number of PCI Express Slots
    • 7
    • Number of PCI Express x16 Slots
    • 7
  • Interfaces/Ports
    • Total Number of USB Ports
    • 9
    • Number of USB4 Ports
    • 2
    • VGA
    • Yes
    • DisplayPort
    • Yes
    • Number of Network (RJ-45) Ports
    • 2
  • Onboard Interfaces
    • Number of SATA Interfaces
    • 4
    • Number of M.2 Interfaces
    • 4
    • Total Number of Onboard USB Ports
    • 7
    • Number of Onboard USB 2.0 Ports
    • 4
  • Physical Characteristics
    • Form Factor
    • SSI EEB
    • Width
    • 330 mm
    • Depth
    • 305 mm
  • Miscellaneous
    • Package Contents
      • PRO WS WRX90E-SAGE SE Workstation Motherboard
      • 2 x PCIe 8-pin to CPU power cables
      • 1 x 24-pin power cable (Y cable)
      • 2 x Mini DisplayPort cables
      • 4 x SATA 6Gb/s cables
      • 1 x Thermistor cable pack
      • 1 x Q-connector
      • 1 x M.2 Q-Latch package
      • 1 x AMI license sticker
      • 4 x M.2 rubber packages
      • 1 x Screw package for M.2 Key E
      • 1 x ACC Express Activation Key Card
      • 1 x Quick start guide
    • Brand Compatibility
    • AMD
    • Environmental Compliance
    • Restriction of Hazardous Substances (RoHS)
